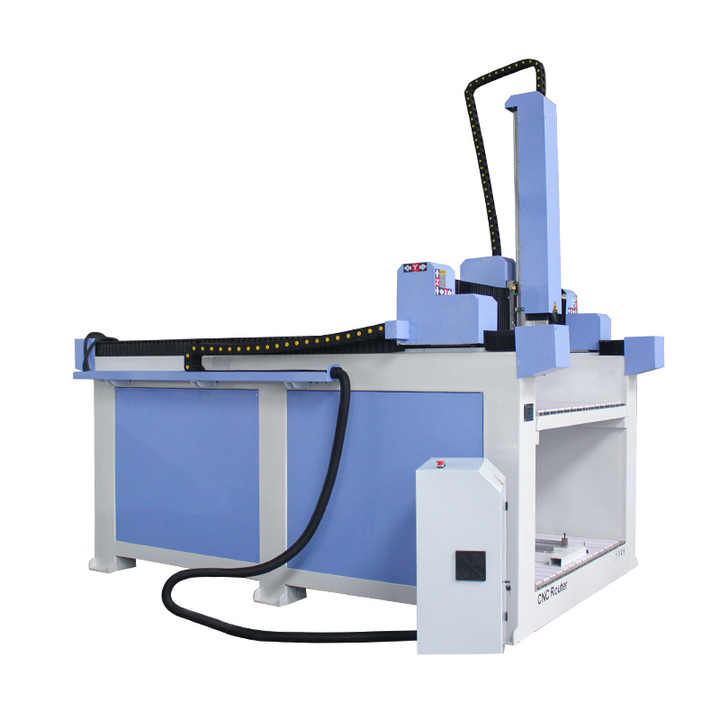

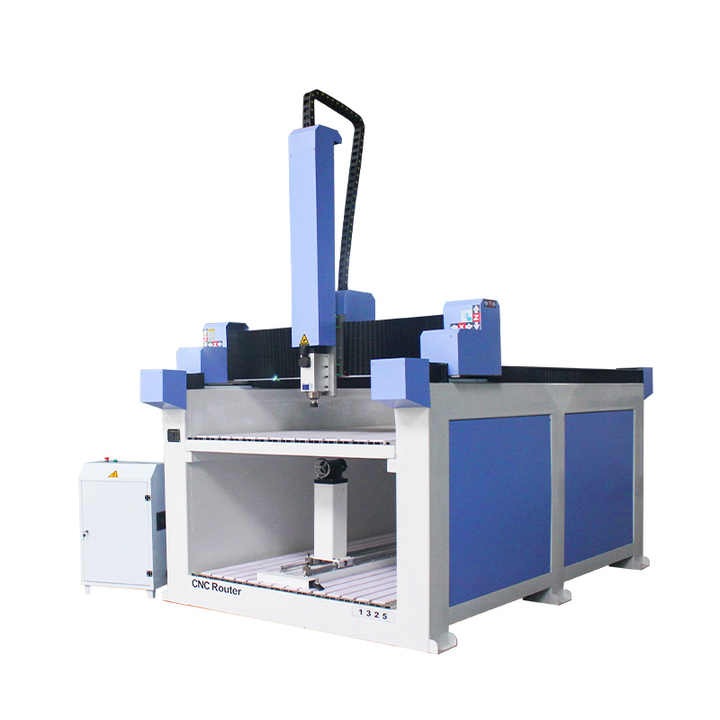

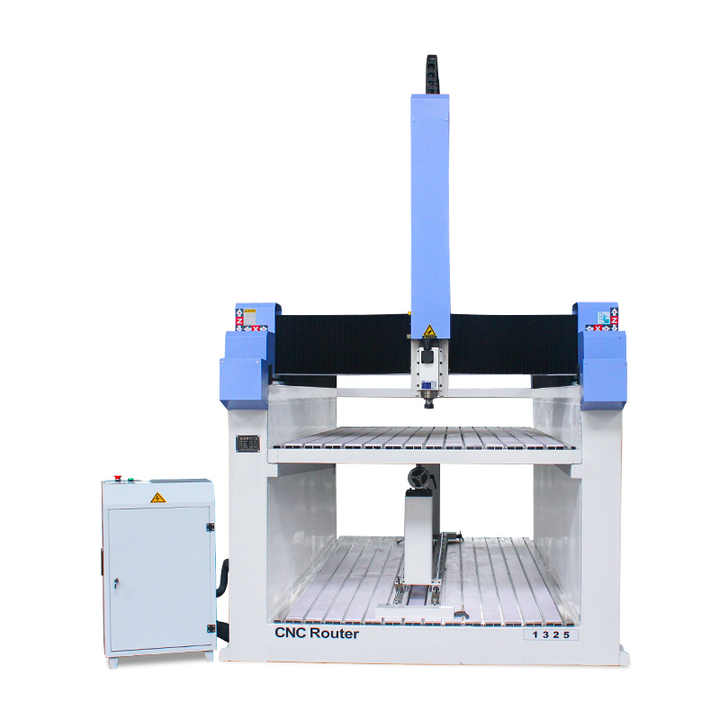

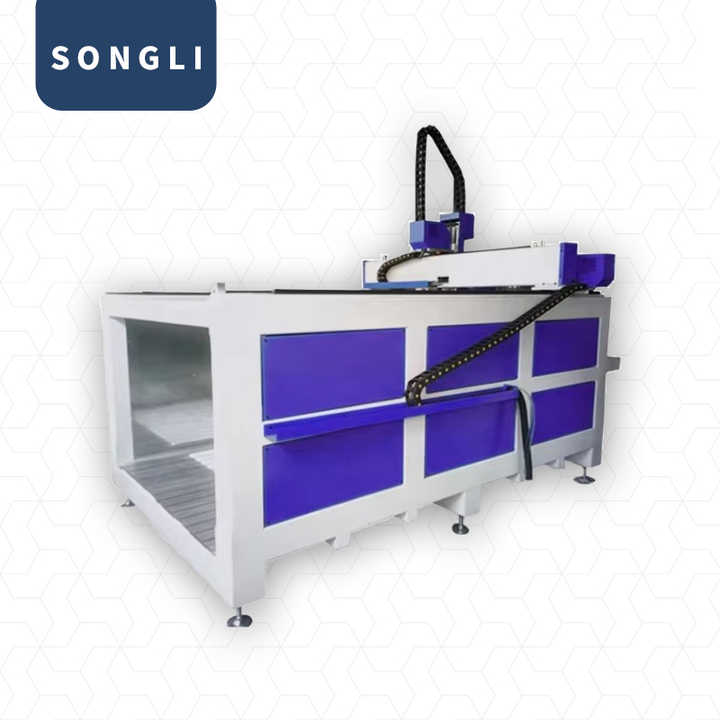

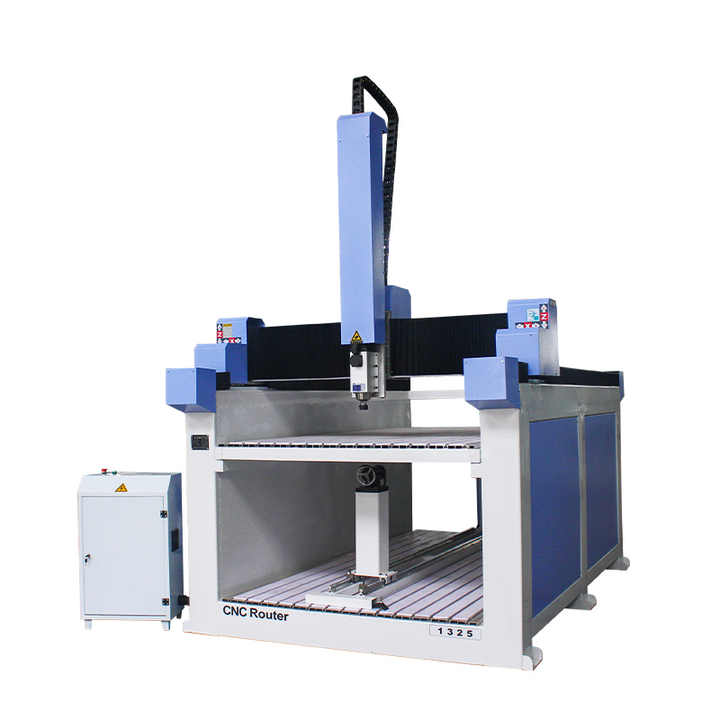

1325 heightened CNC engraving machine
| Product mode | 1325 woodworking engraving machine (customized 1000mm) |
| Machine Tool | square tube welding, machine finishing |
| Table Size | 1300mm*2500mm |

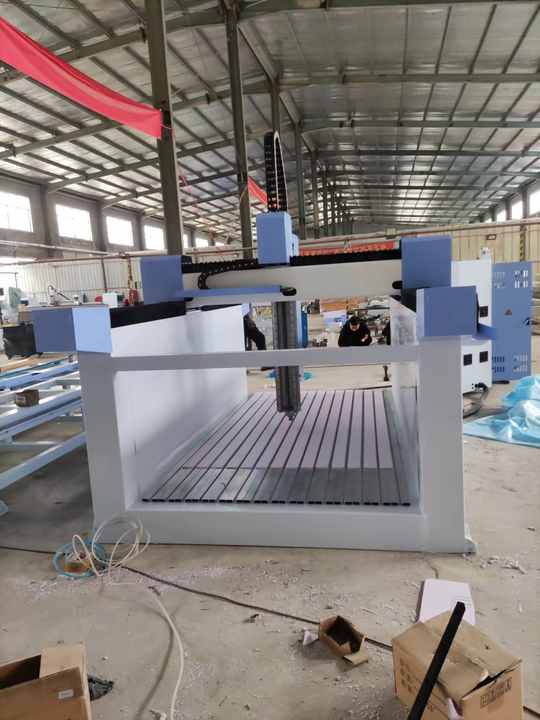

| Z-axis lifting size | 1200mm |

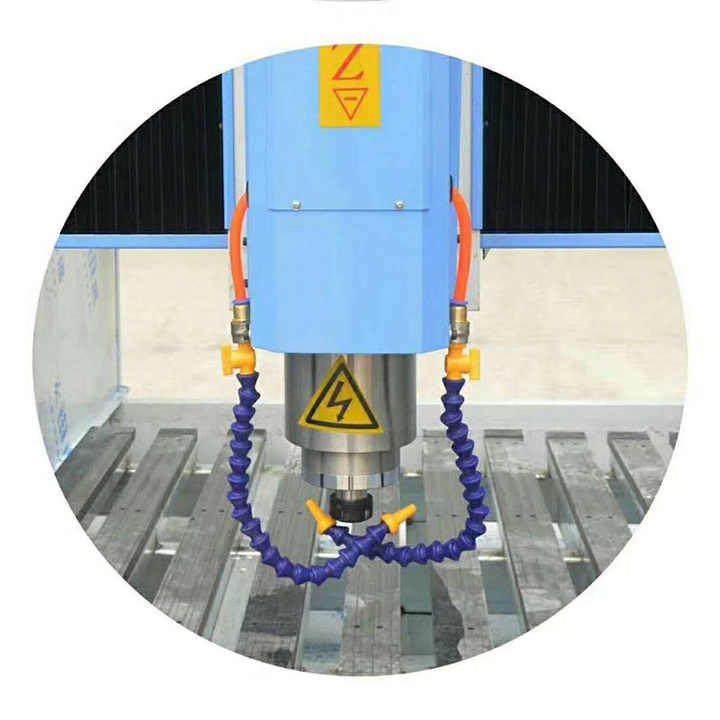

| Spindle type | ordinary constant power |
| Spindle cooling mode | air cooling and water cooling |
| Spindle power (optional) | 2.2 kW, 3.2 kW, 5.5 kW, 6.5 kW |
| Driving system | XY gantry double drive |
| Z-Shaft Drive System | High Precision Ball Screw |
| Maximum speed | 20 m/min |
| Manufacturer | Shandong Songli Machinery Co., Ltd. |
| Location accuracy | +-0.35mm/1000mm |
| Repeated positioning accuracy | +-0.02mm/1000mm |
| Running instructions | G code F/S command compatible |
| Power requirements | 220V/380V |
| Machine weight | 1000kg |
| Outline size | 3000mm long, 2000mm wide, 2600mm high |
| Operating system | Ncstudio |
| Square track frame (optional) | 20, 24, 25 square track swivel |
| Operating Motor | stepping, hybrid servo, AC pure servo |
| Body color | black, red, blue and white |
| Oil filling method | semi-automatic oil filling system |
