Brand: Songli
Power supply mode: alternating current
Applicable Industry: Craft Sculpture/Wood Sculpture/Stone Sculpture/Advertising Industry
Applicable Material: Wood, Jade, Stone, Olive Core, Ceramics, Soft Metal
Functions: relief, carving, milling, grooving, circular carving, cutting

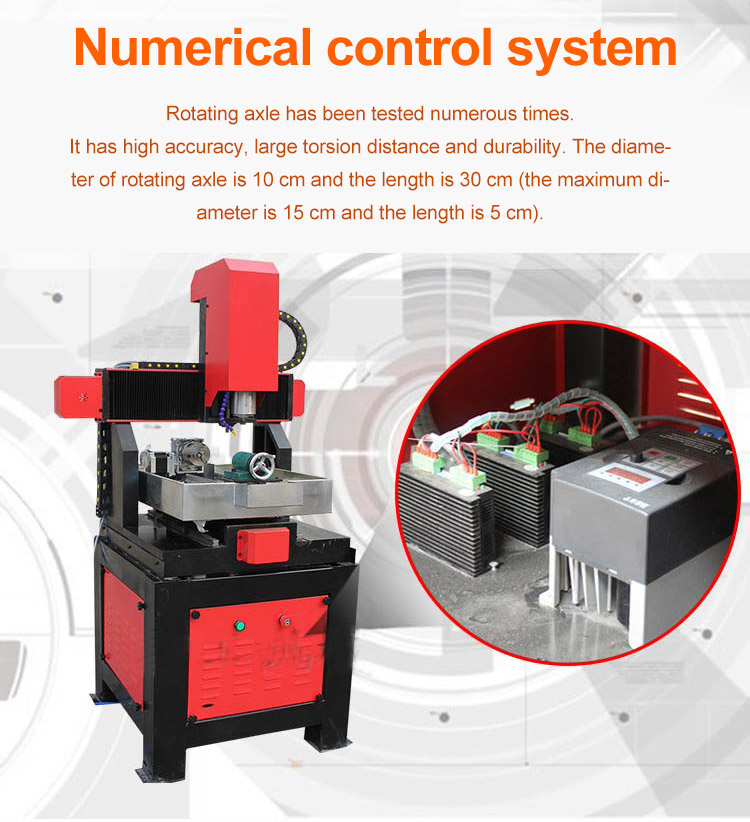

Control System: Ncstudio

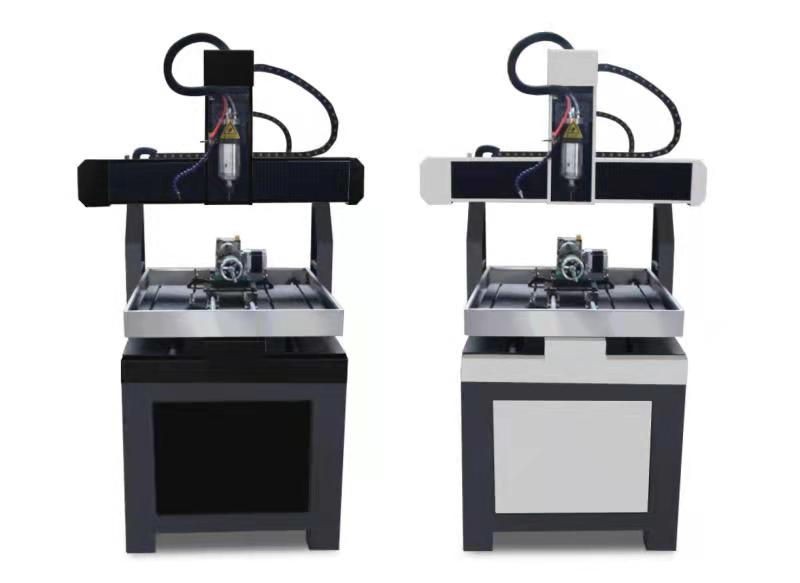

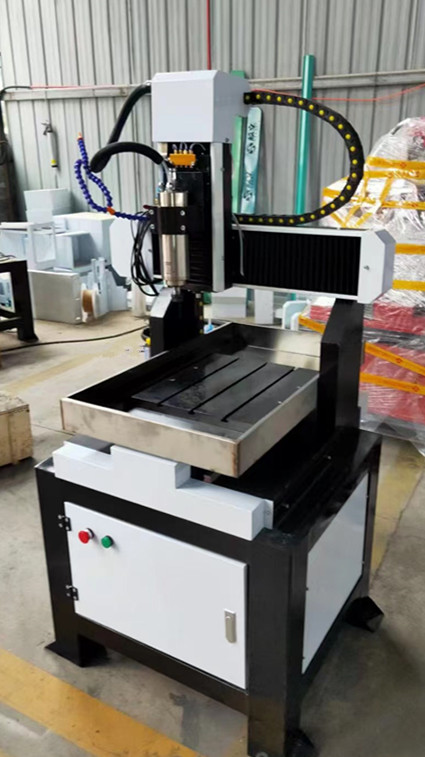

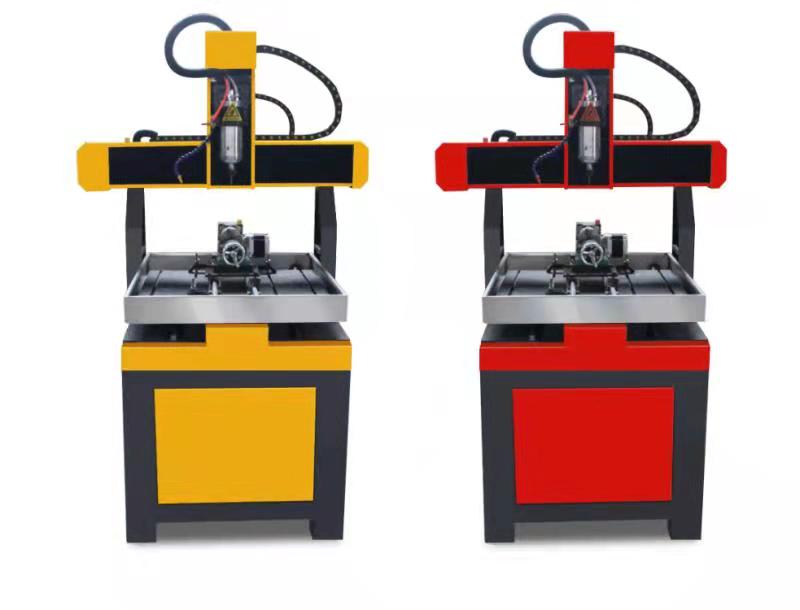

Machine color can be customized
Main features
1. This machine is suitable for the diversification of the complexity of processing or diversity processing,wide range of uses,can be carved drilling,mainly used for cutting and engraving and milling.
2.This machine is suitable for wooden coffin coffin relief carving,also can do three-dimensional wave board processing,screen window art processing,computer aided machining table and the type of Home Furnishing products.
3.can be processed jade marble granite artificial stone ceramic tile glass aluminum material and so on.

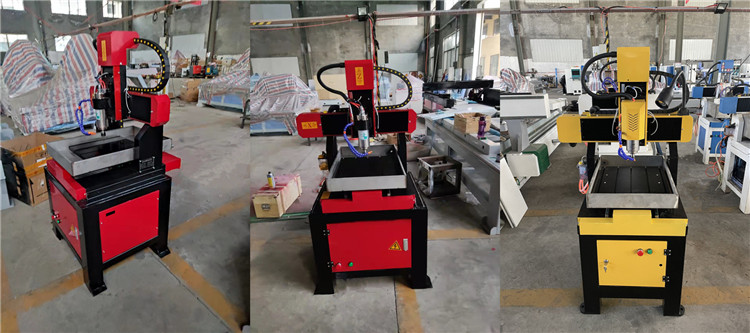

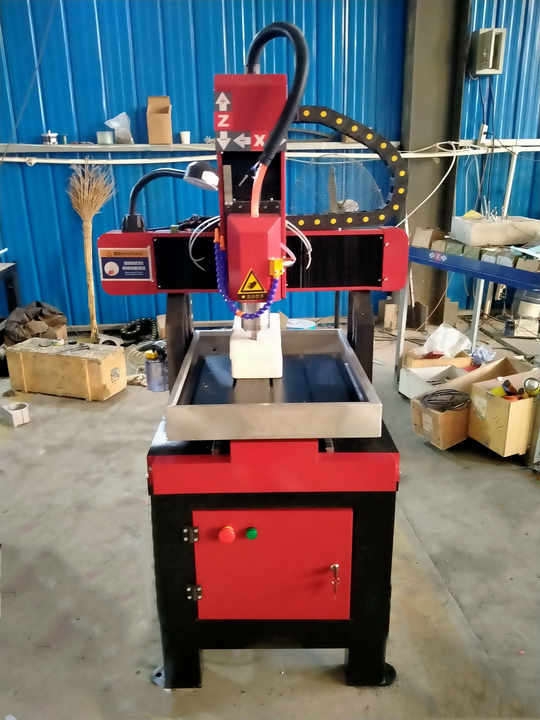

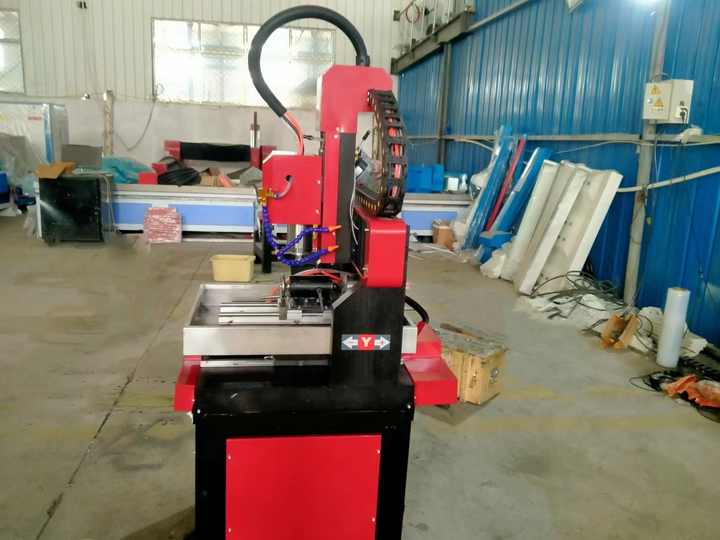

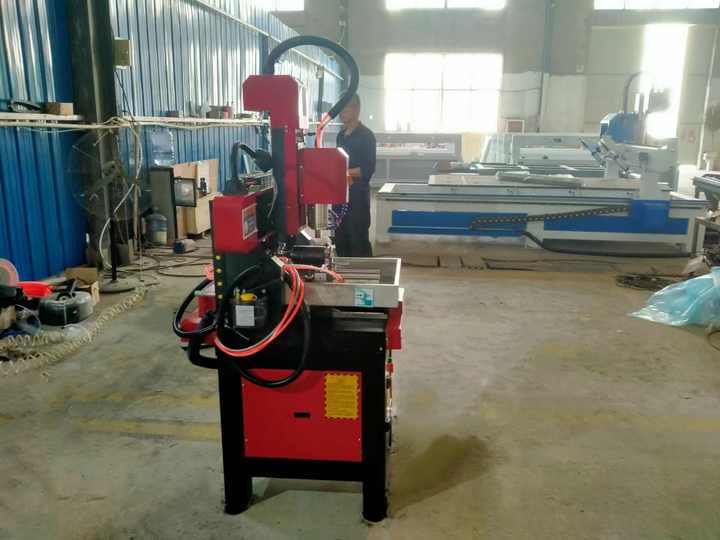

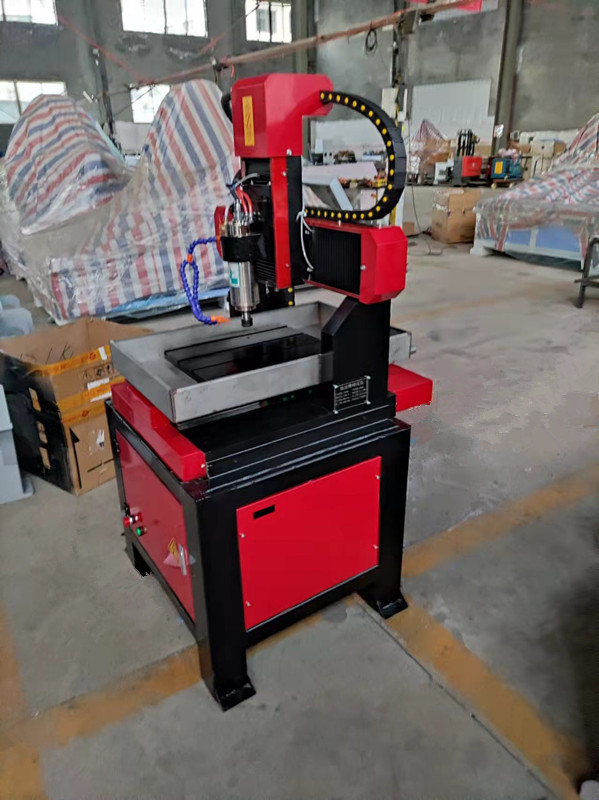

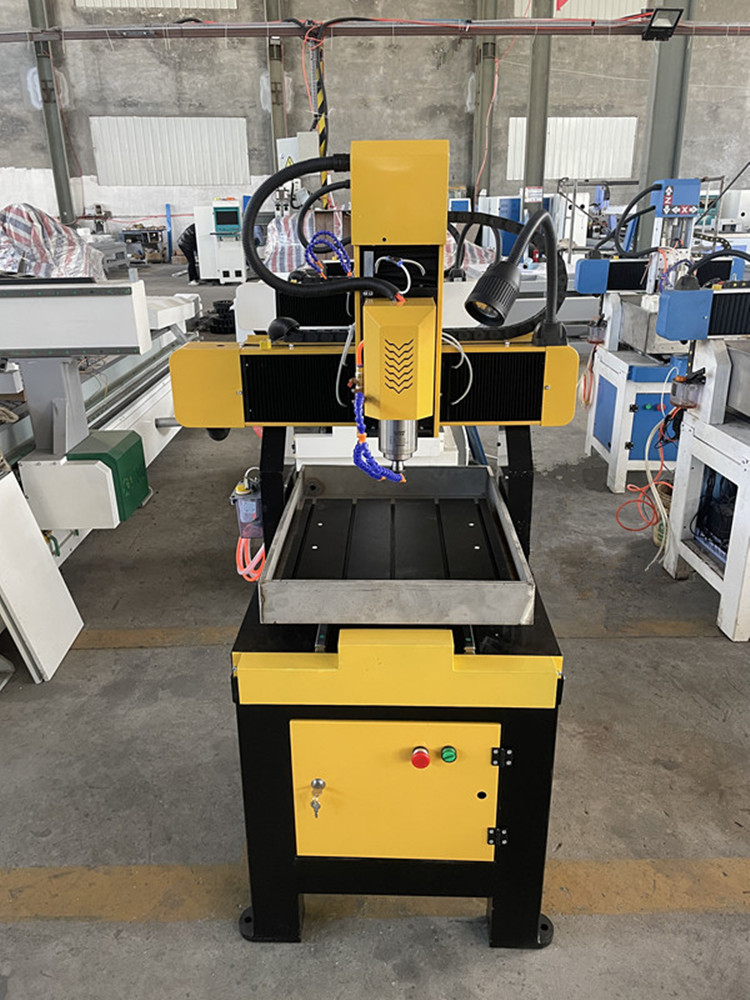

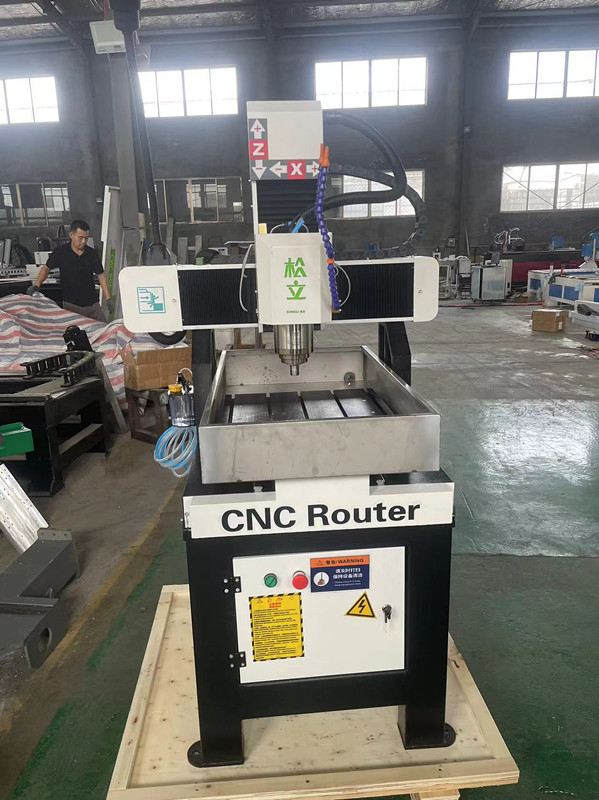

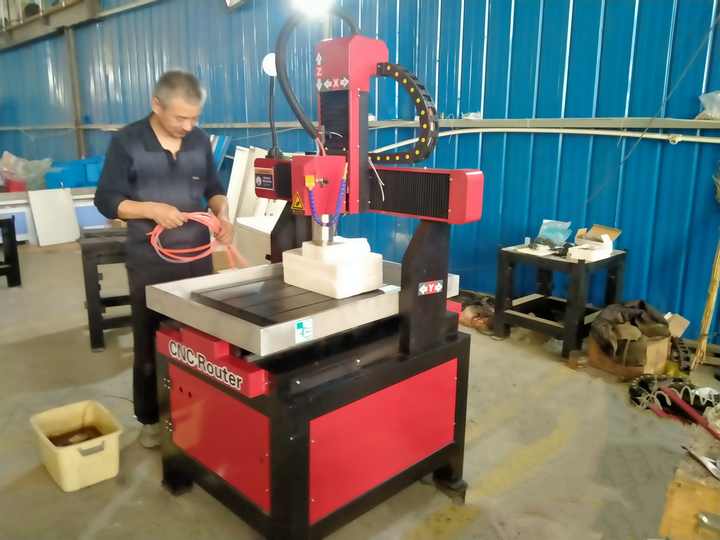

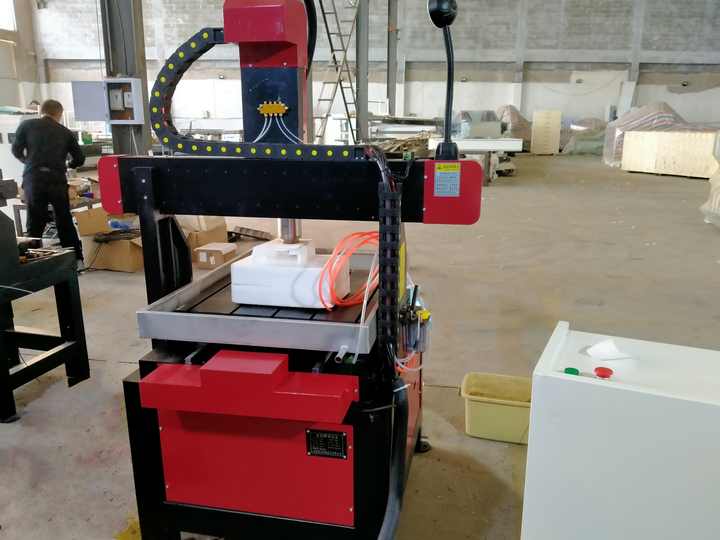

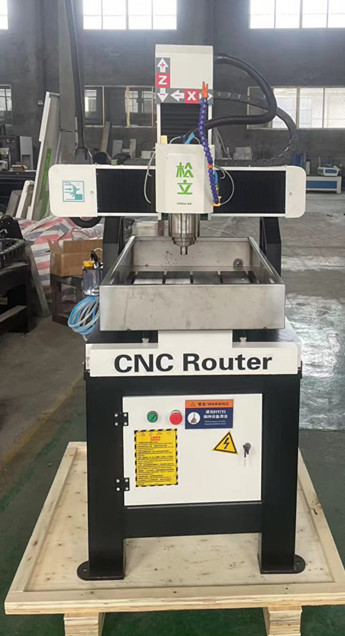

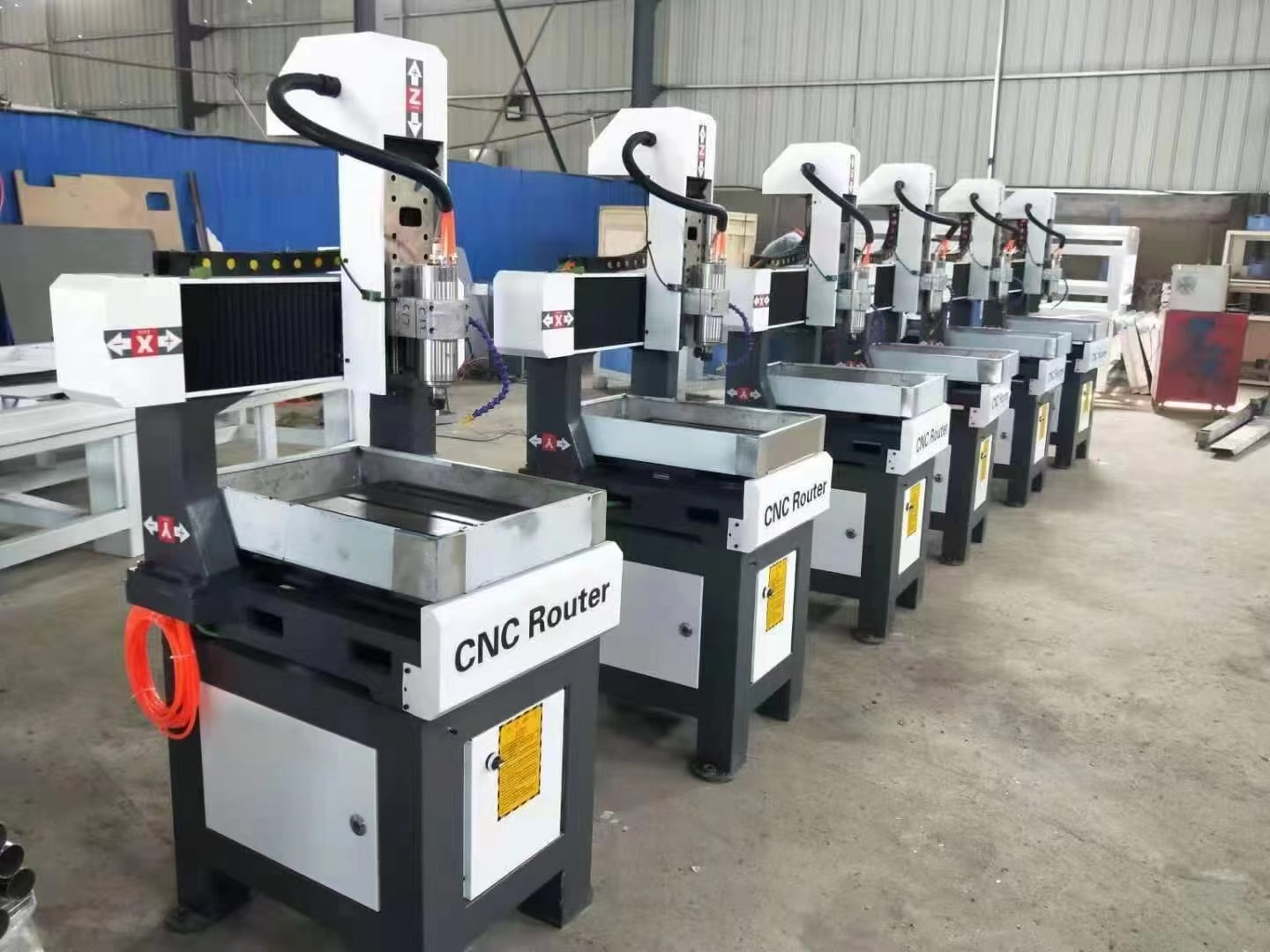

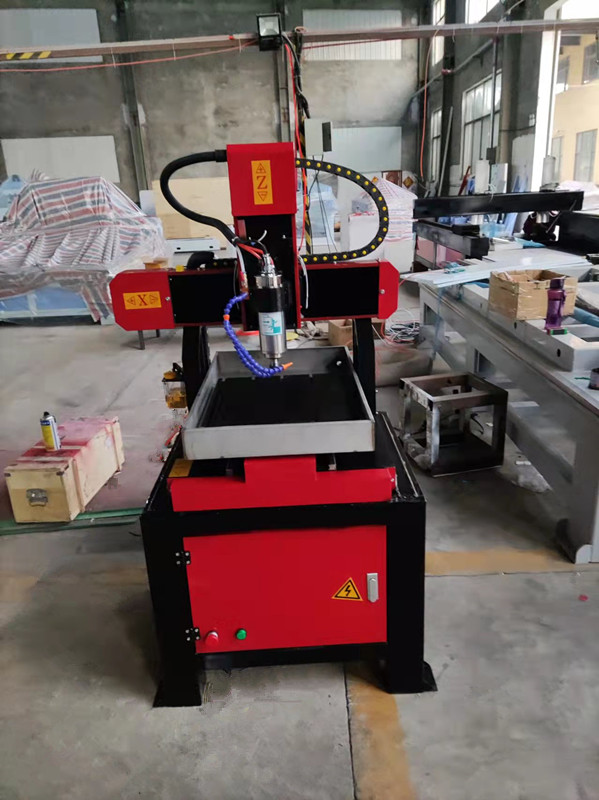

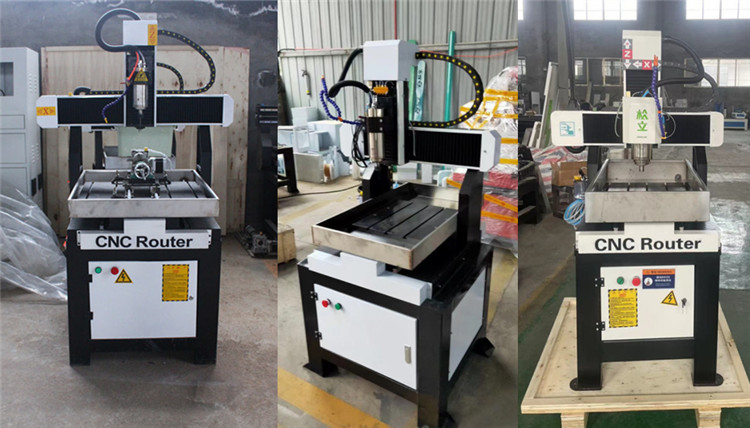

Real Pictures

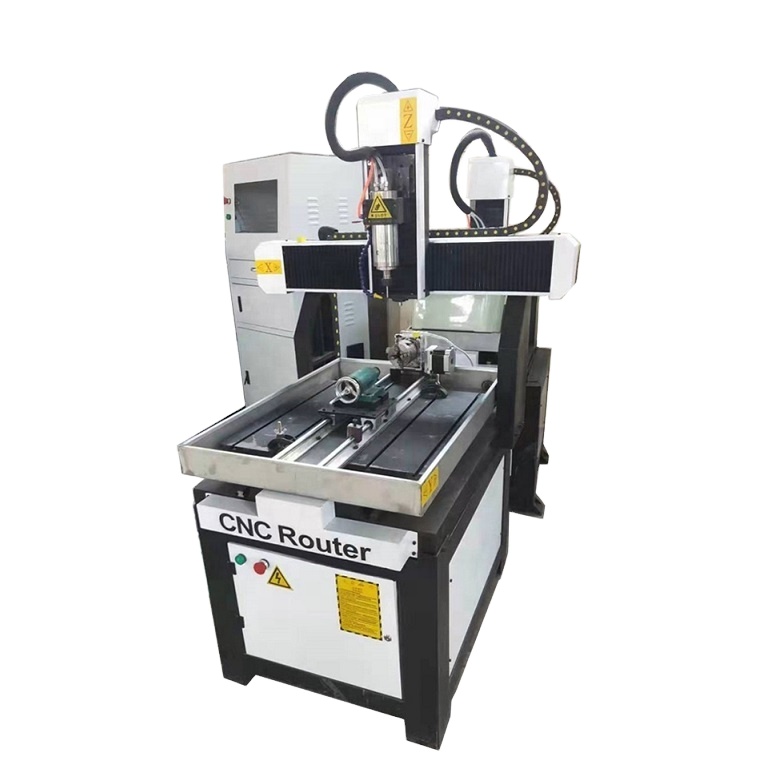

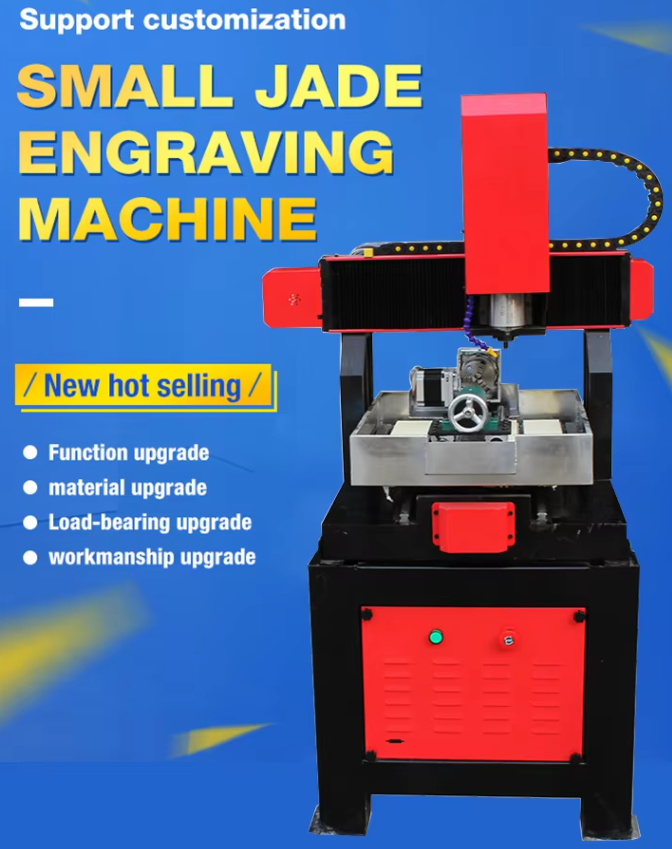

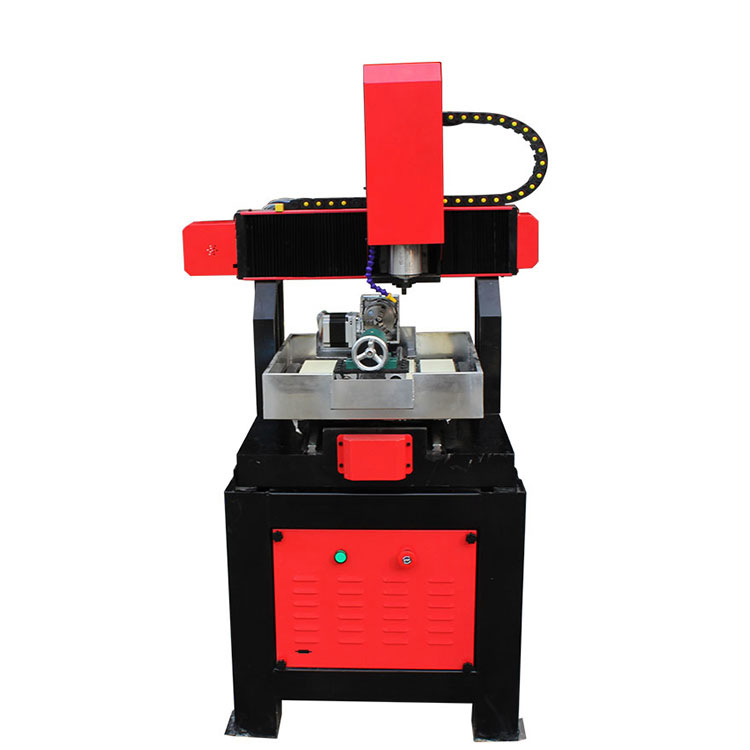

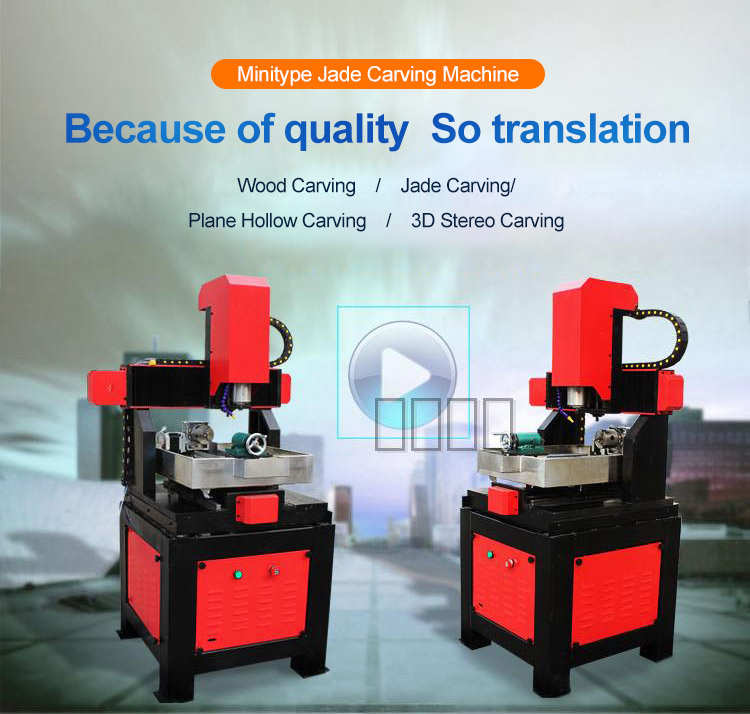

4040 mini jade wood carving machine
item | value |
Product name | 4040 Minitype Jade Carving Machine |
Power | 1.5KW/2.2KW |
Working voltage | 220V ,50/60Hz |
Processing area | 400mmx400mm(accept custom) |
Work platform | Welding 5mm platform for fine steel |
XYZ stroke | 400*400*300mm |
Machining precision | ±0.05mm |
Repeatable positioning accuracy | ±0.02mm |

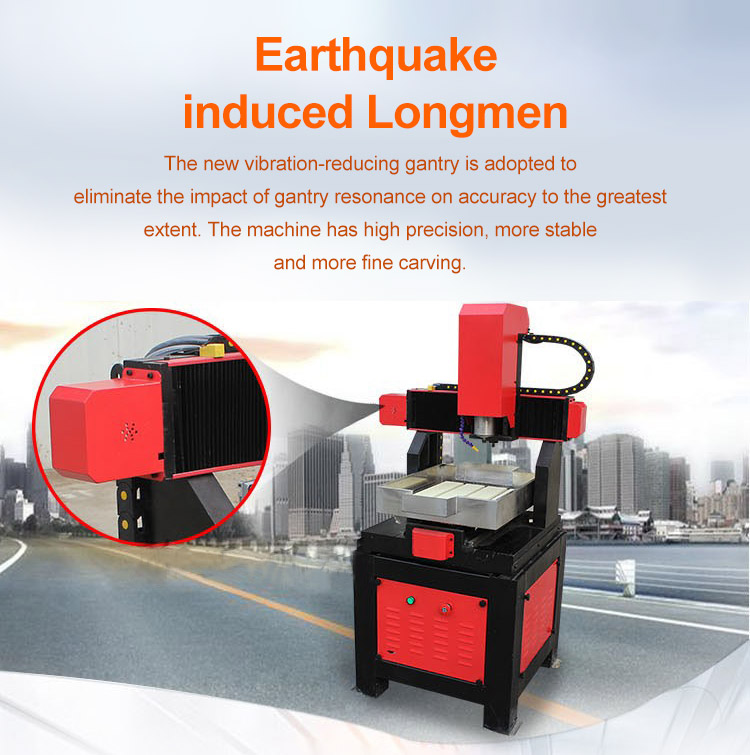

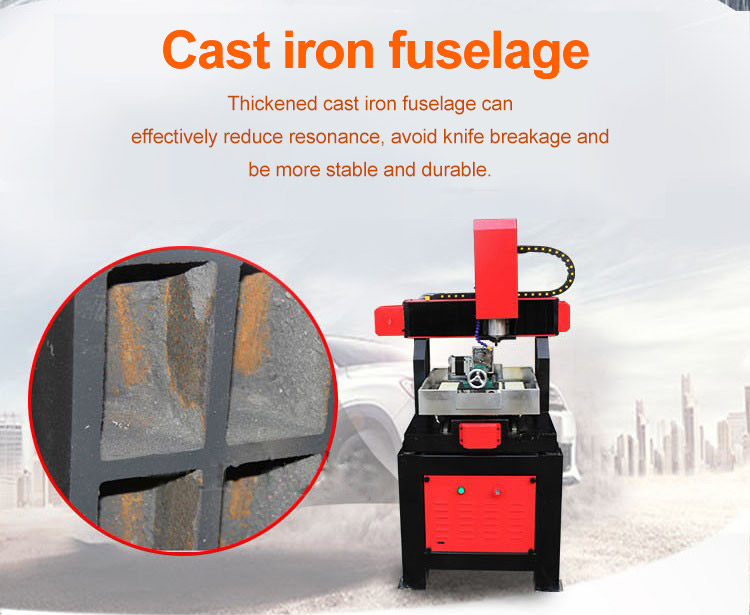

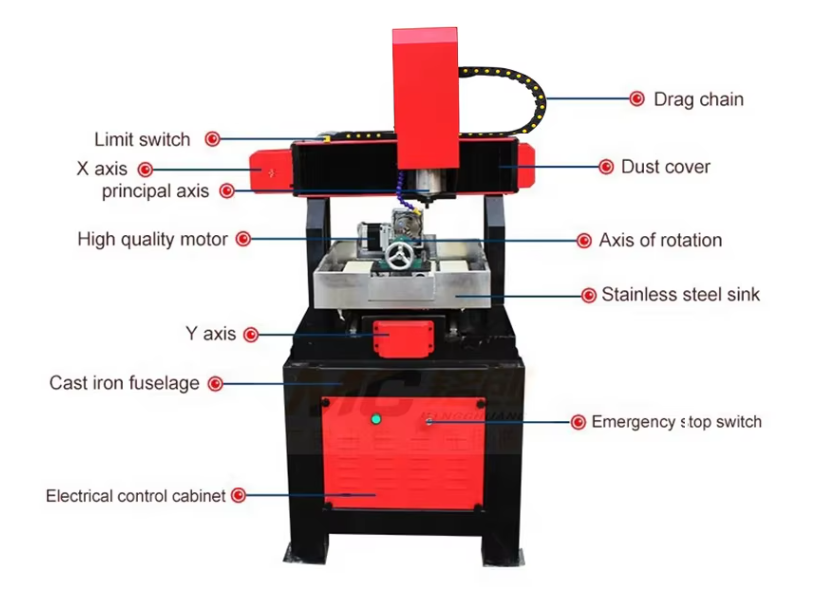

Mesa and Longmen structure | Cast iron castings for the whole machine |
Base | Seamless welding quenching treatment |
Operation mode | Stepper motor / hybrid servo motor |

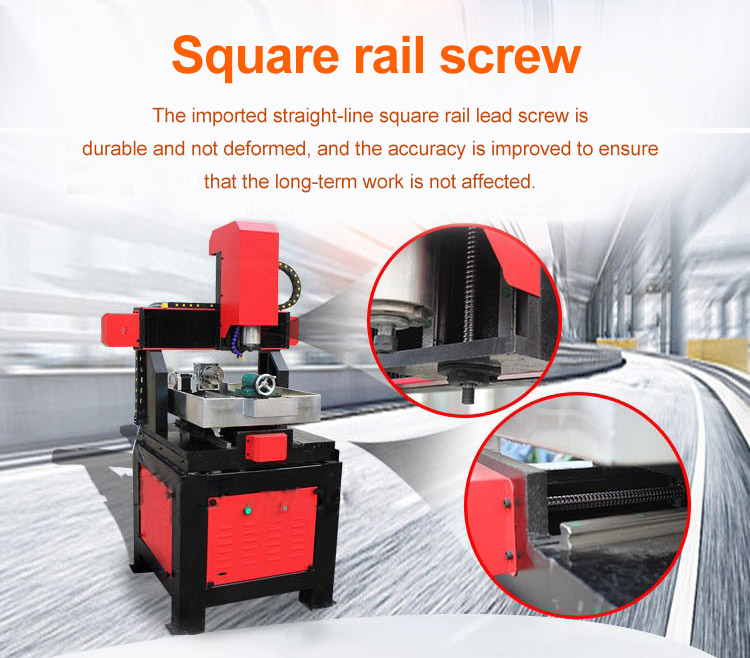

XYZ structure | Lead screw + square rail |
X/Y axis | 20 square rail/helical rack |
Z axis | High Precision TBI Ball Screw |

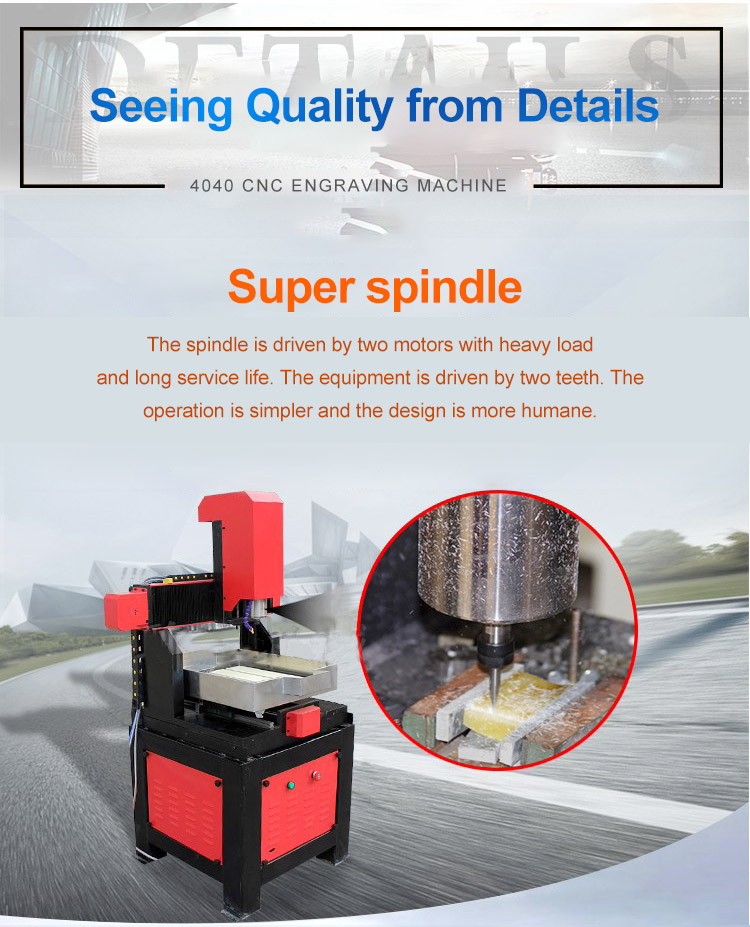

Principal axis | Power 1.5/2.2 kW water cooling speed 0-24000 r/min (power optional) |
System environment | WINDOWS XP/Win7/8 |
Support format | BMP,PLT,AI,CDR,DXF |
Go abreast | 20 way rail |
Driver | Type 86 Driver |

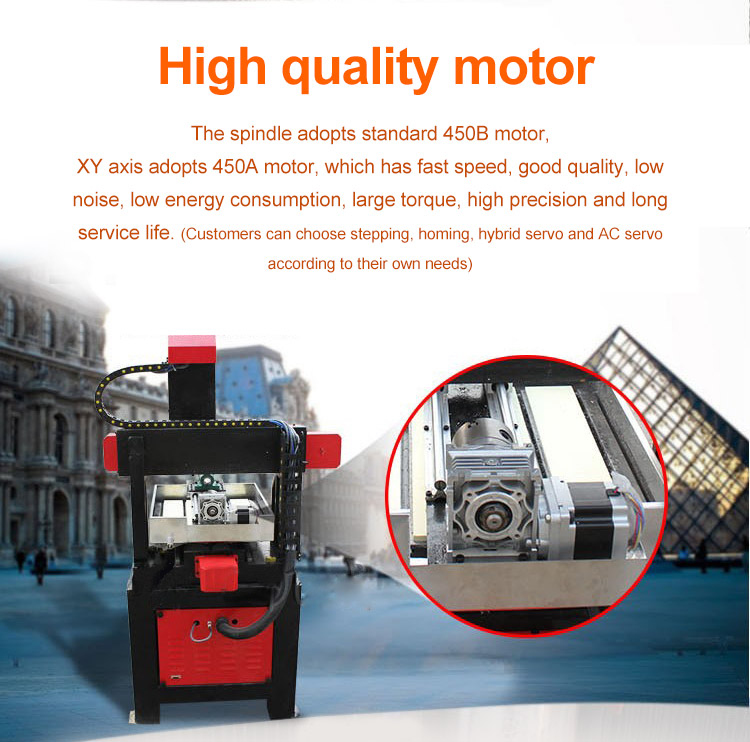

Operation mode | 450b stepping motor (optional hybrid servo) |
Engraving instruction | HCP/ |
Operating system | Ruizhi Tianhong System |

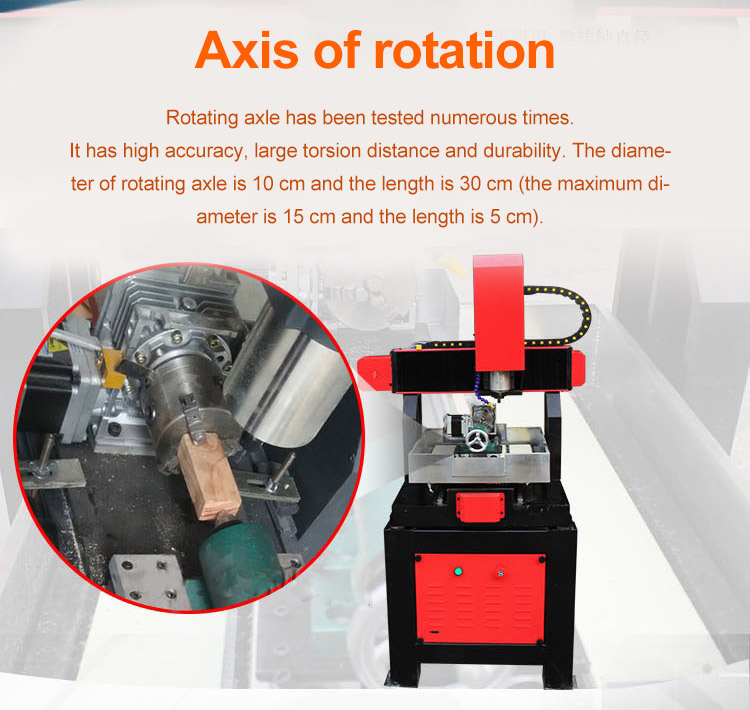

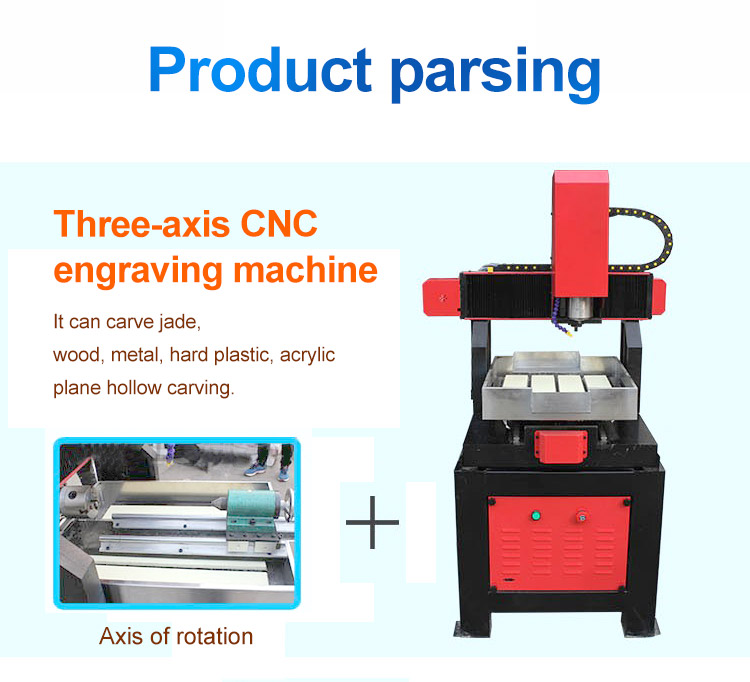

Axis of rotation | Matching |
Our Services
· All our machines will be thoroughly inspected and tested by our quality control department before shipment.
· Lifelong free technical maintenance and spare parts supply.
· Free training. Our engineers can speak English.
· 24-hour technical support.
· We will provide you with "instruction book", "operation manual" and "training video". This is easy to understand.
· We will also provide online face-to-face training, from our dedicated software, our engineers can control computers and machines, step by step to show you.
