Application
Stone processing: marble granite
Wood Processing: processing of various furniture such as door, window, cabinet, screen and so on
Advertisement: engraving and cutting various labels and number plate.
Art crafts: engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials
wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal materials.

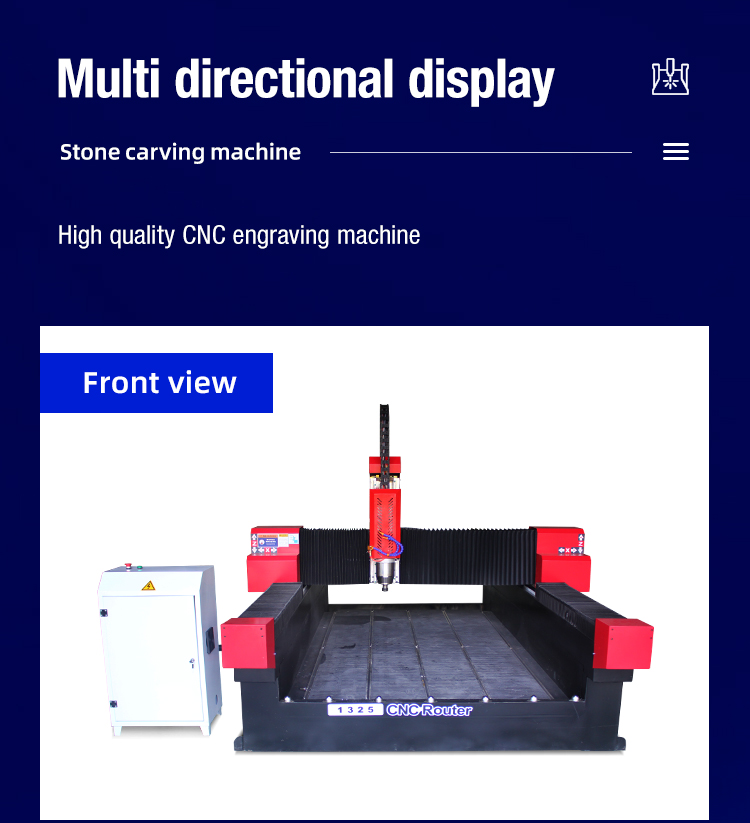

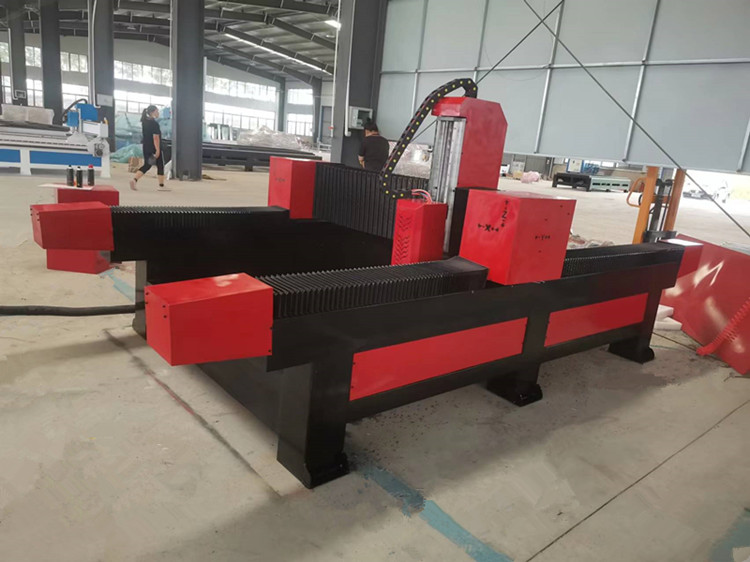

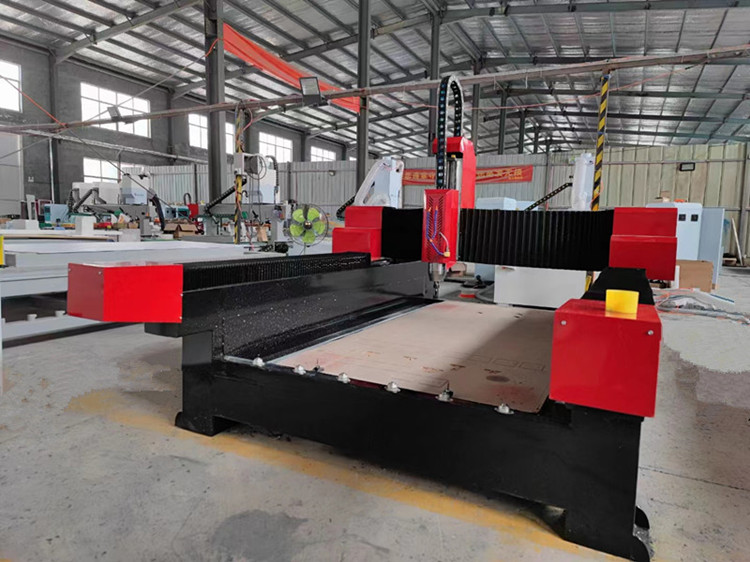

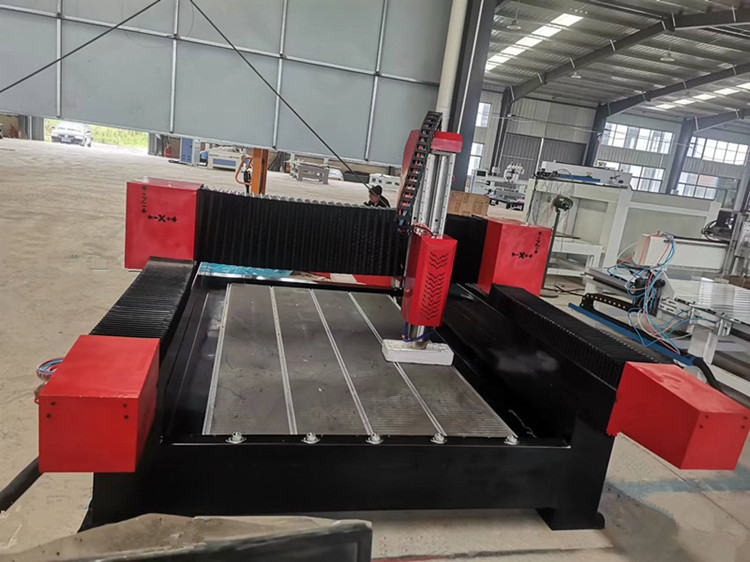

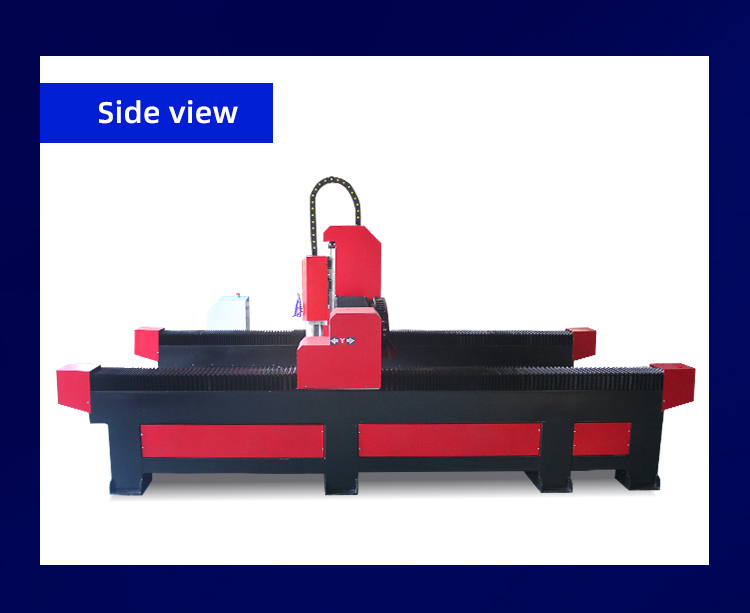

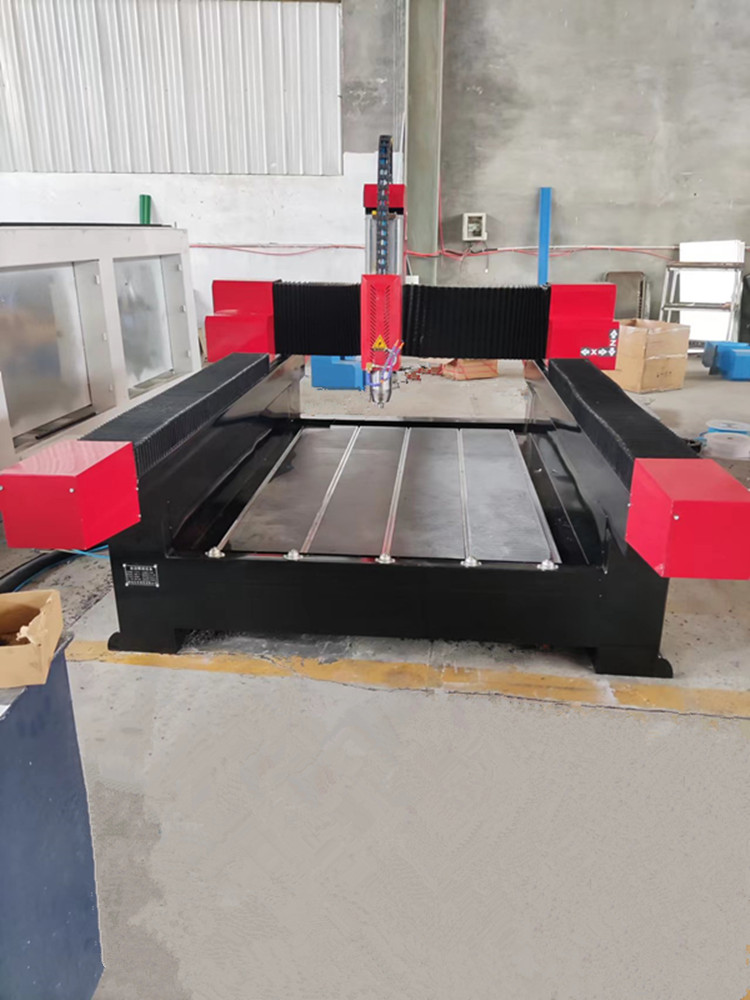

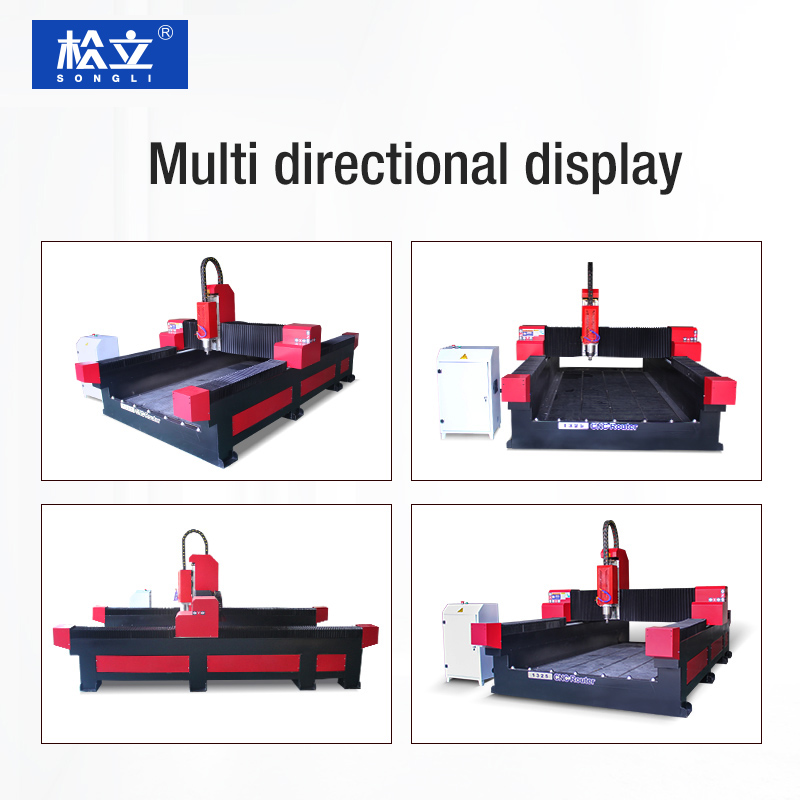

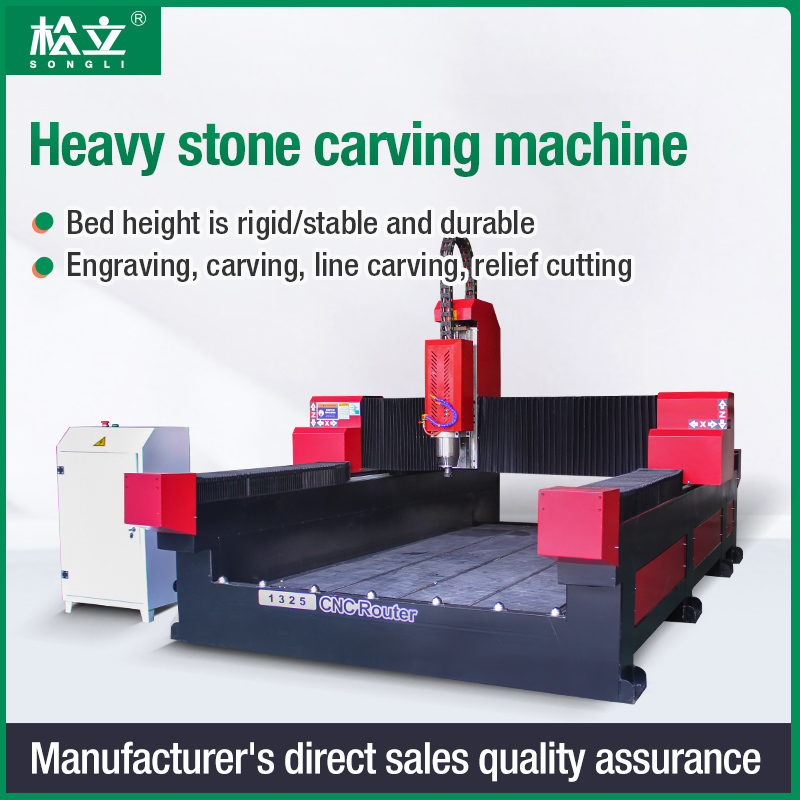

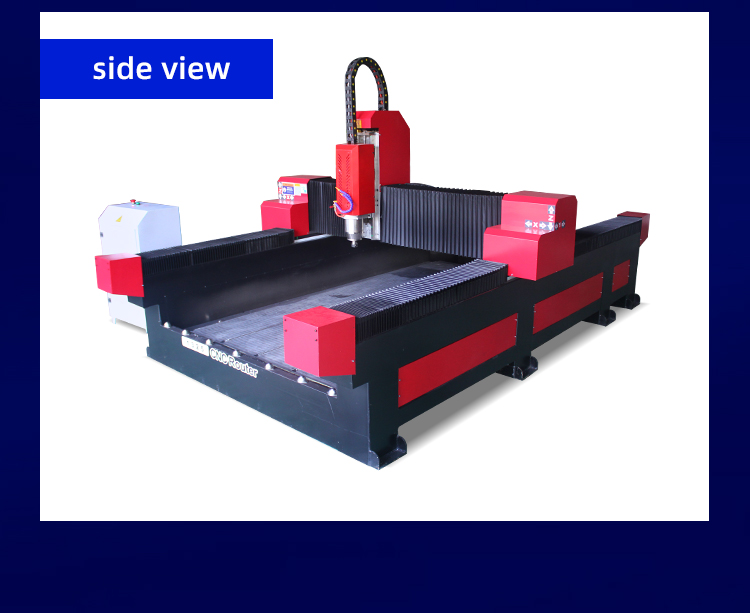

Real Pictures

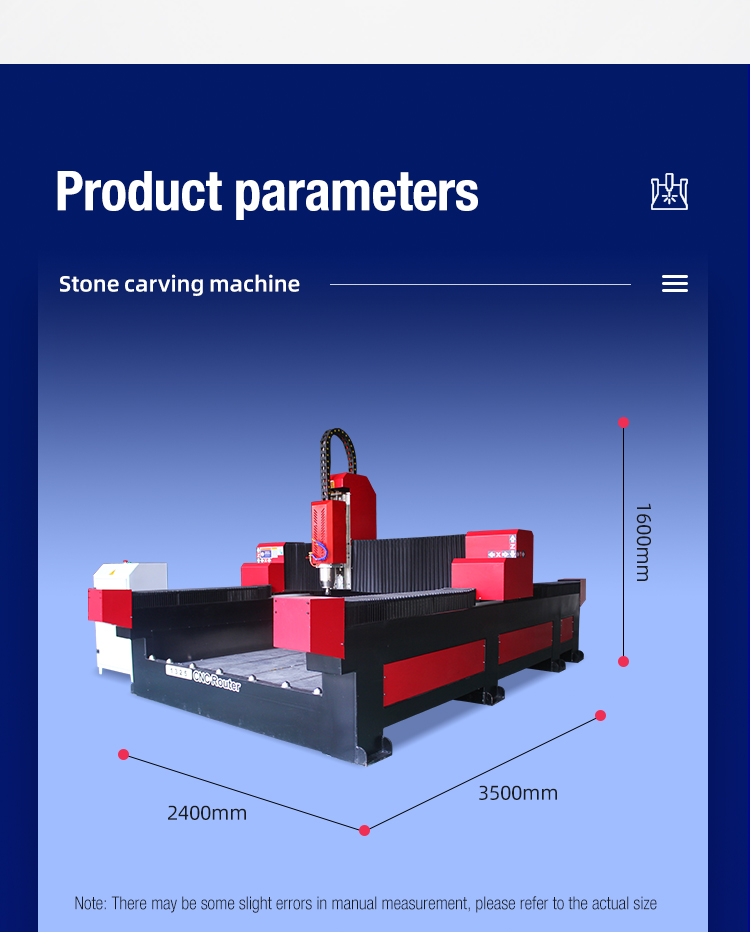

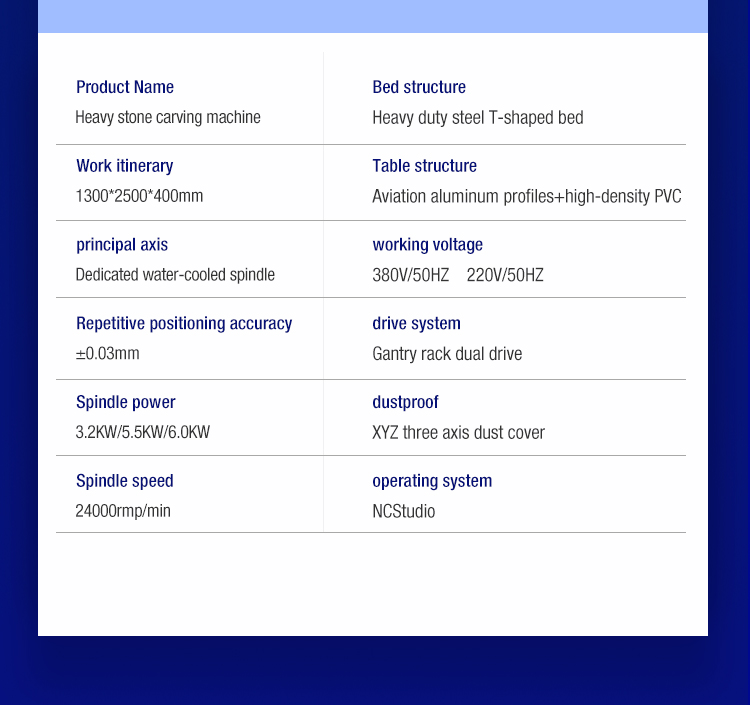

Machine parameters
| Working area | 1300*2500*300mm |
| Table style | Aluminum T-slot table with pvc; |

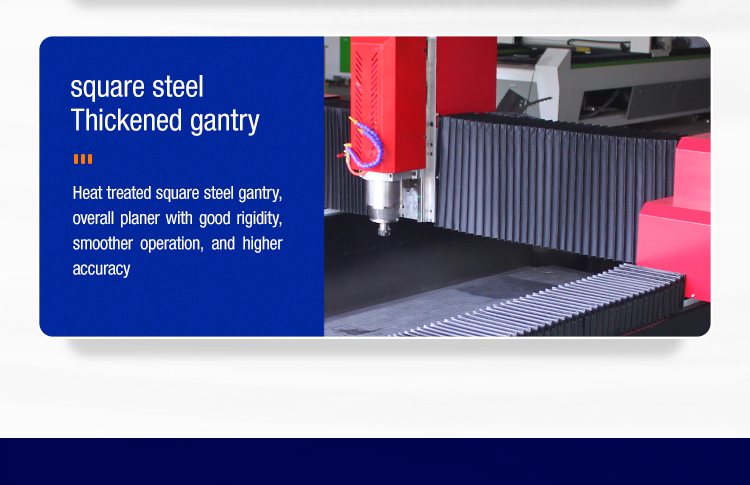

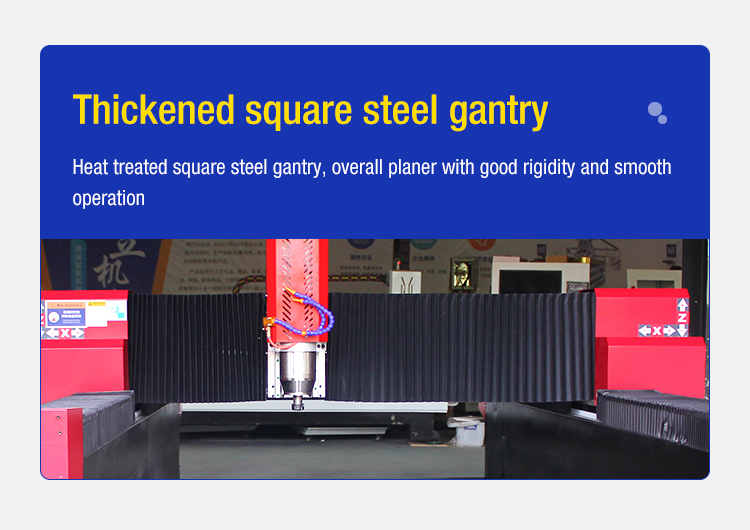

| Machine structure | 8mm thickness welded steel tube,cast iron vertical shafts and steel gantry |

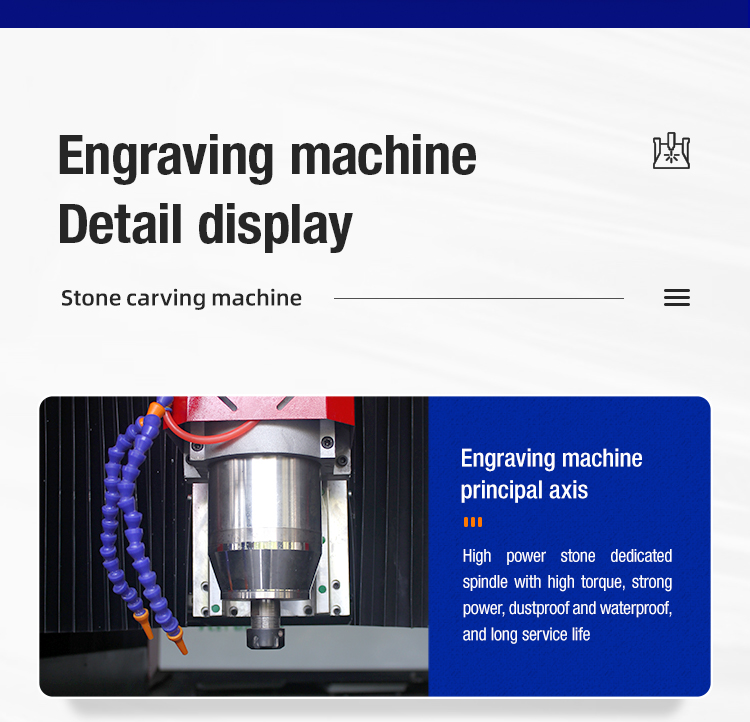

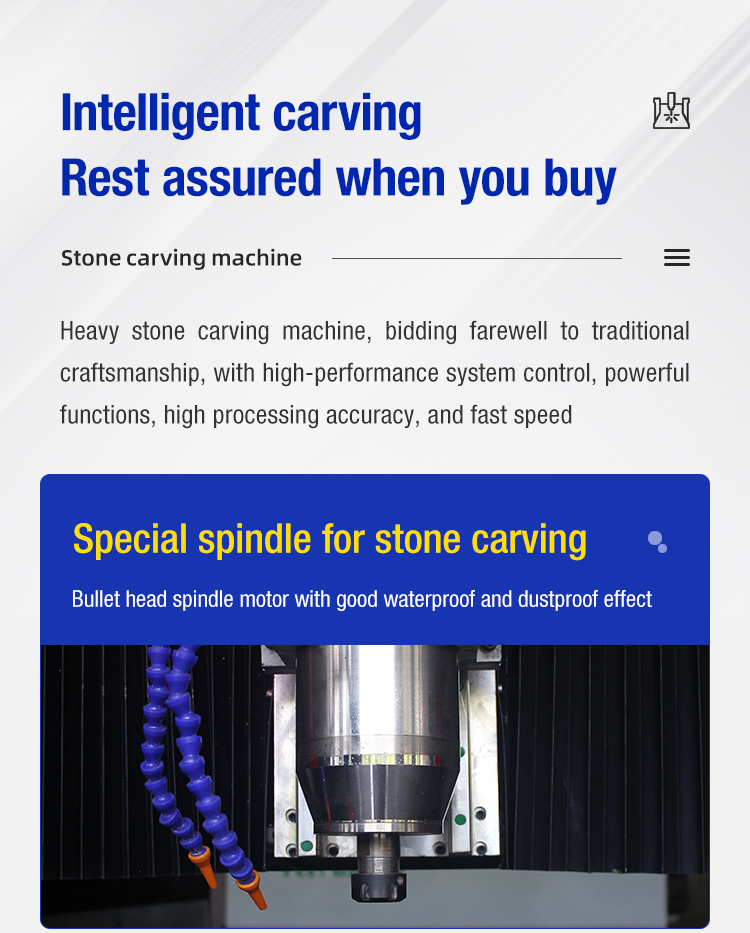

| Spindle | 3.2kw/5.5KW water cooling spindle |
| Spindle rotating speed | 0-24000rpm |
| Collect size | ER20 |
| Guide rail | Hiwin square guide rail |
| Driving method | X,Y axis by helical gear rack,Z axis by TBI ball screw |
| Motors and drivers | Stepper motor450B,Leadshine drivers MA860H |
| Control system | Ncstudio
|
| Invert | Fuling invert |
| Max.idling speed | 25m/min |
| Max.working speed | 12m/min |
| Working accuracy | <0.01/300mm |
| Instruction formate | G cose*u00*mmg*plt |
| Working voltage | 220v/380v |
| Compatible software | Type3/Castmate |

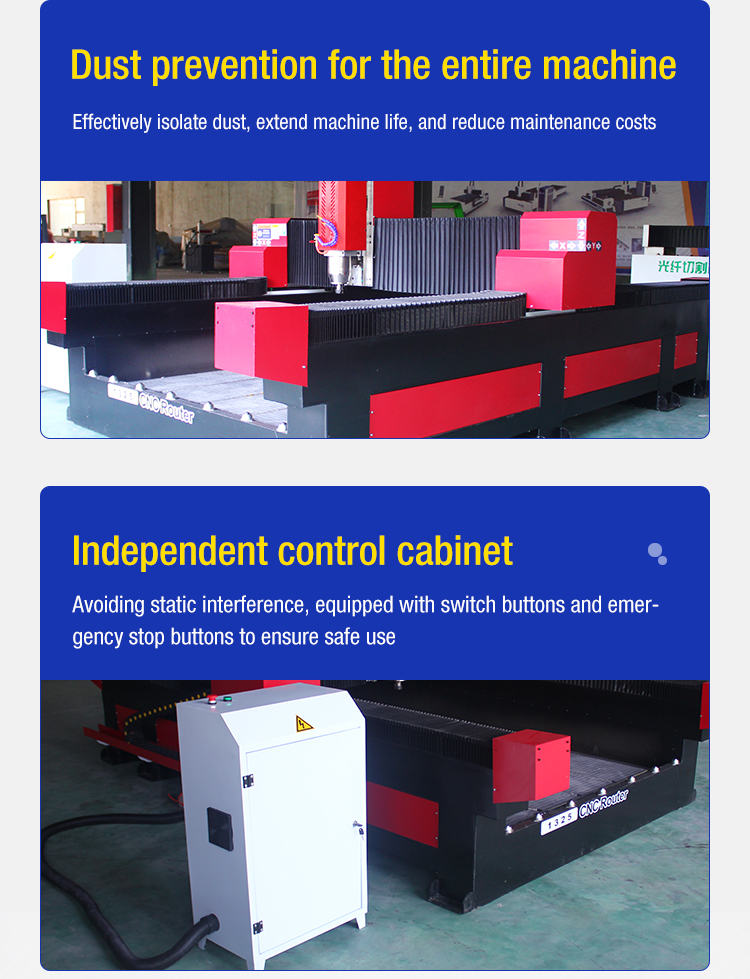

| Control cabinet | Independent |
| Other | Tool sensor,oiling system,water pump,tool box etc. |
Application Wood Processing: processing of various furniture such as door, window, cabinet, screen and so on Advertisement: engraving and cutting various labels and number plate. Art crafts: engraving characters of any languages and graphics on gifts and souvenirs. |
Applicable materials wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal materials.Stone material |
Services:
· All of our machine will be full-checked and tested by our quality control department before shipment.
· Lifetime technology maintenance in free and spare parts supply.
· Free training. our engineer can speak English.
· 24 hours technical supported.
· We will offer ‘instruction books’, “Operation Manual” and “Training Video” to you. Which is easily understand.
· We also will offer online face by face training, from our special software, our engineer can control machine computer and machine to show you step by step.
