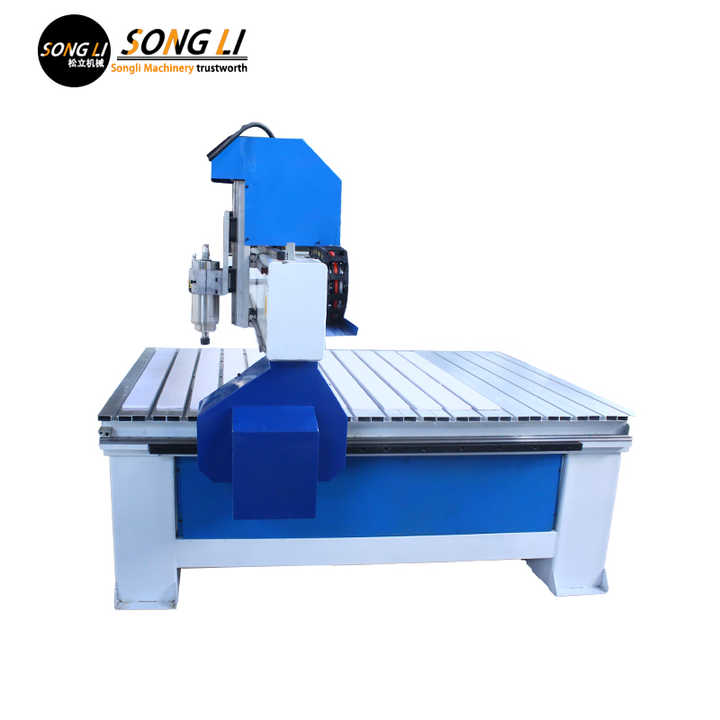

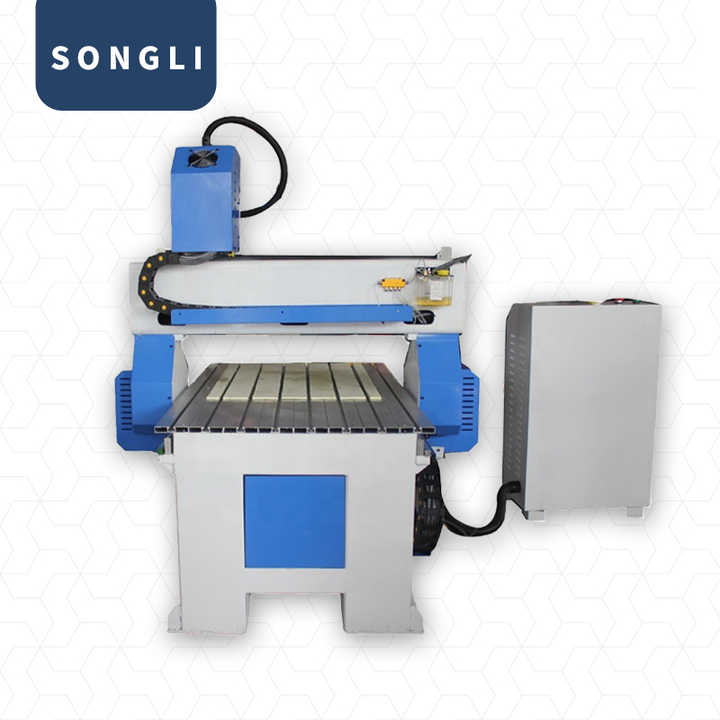

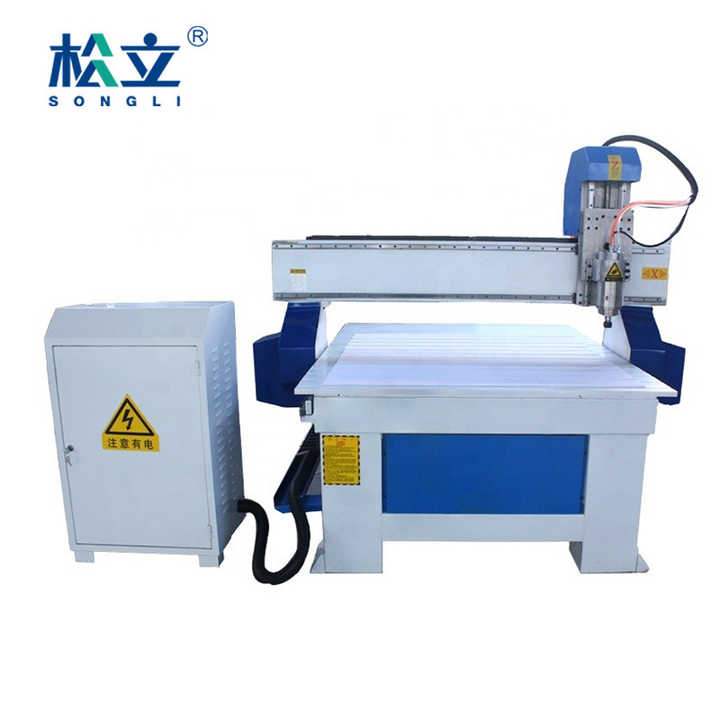

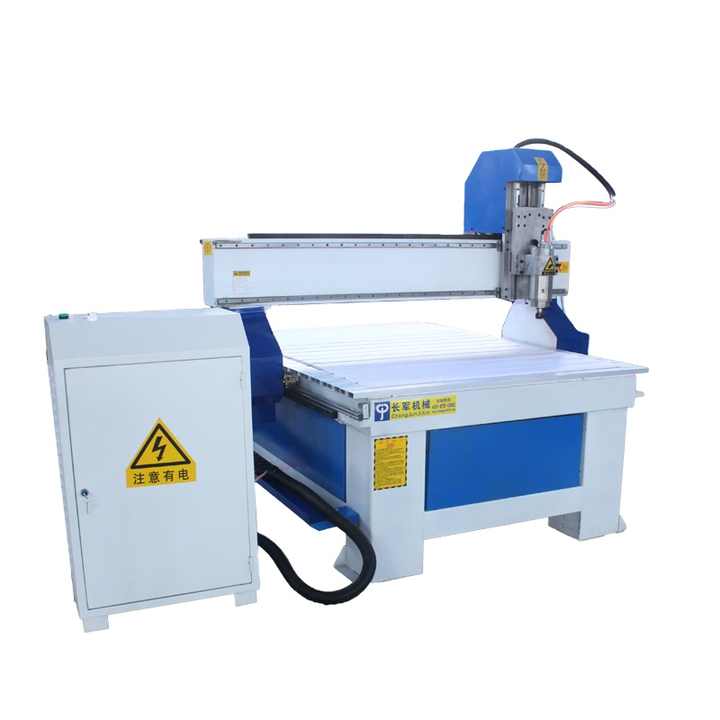

1325 1015 Cnc Router Machine Cnc Engraving and Milling Machines Cnc Router Machine Woodworking

This CNC automatic wood router is a versatile all - rounder, perfect for various applications. As a small woodworking engraving machine, it's compact yet powerful, making it ideal for small - scale workshops and hobbyists. It excels as an advertising relief cutting machine, capable of creating intricate relief patterns on wood, adding a unique touch to advertising signs and displays.​Not limited to wood, it's also one of the top wood routers for acrylic, handling acrylic materials with precision, ensuring clean cuts and smooth edges. Whether you're working on wood crafts or acrylic projects, this engraving machine for wood delivers consistent results. Its automatic operation simplifies the workflow, reducing manual effort and increasing efficiency, making it a great choice for both professional production and creative endeavors.

TELNational Hotline
+86 15562869288

1. Z axis feeding height 200mm

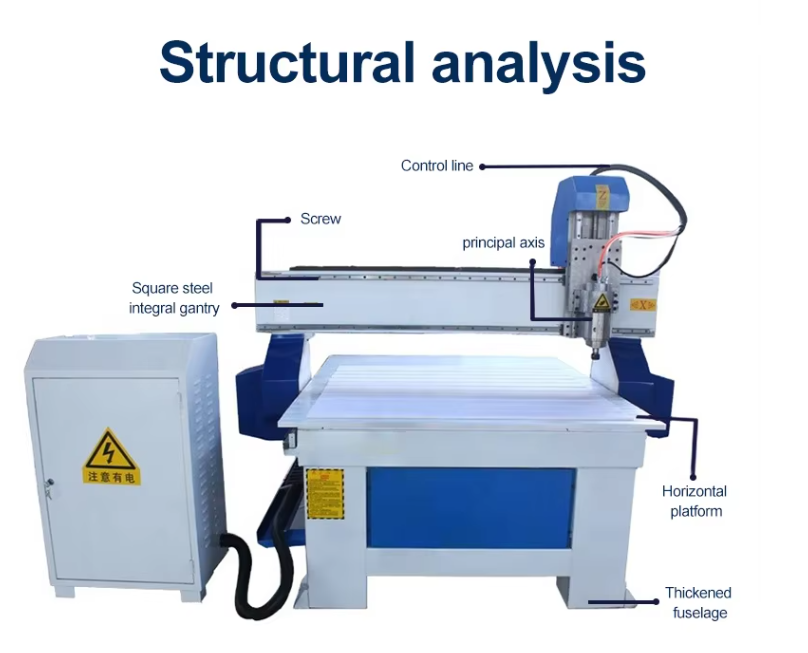

2. Square tube welded steel frame structure-8mm thickness

3. Aluminum T-slot table or Vacuum table +5.5kw Vacuum pump

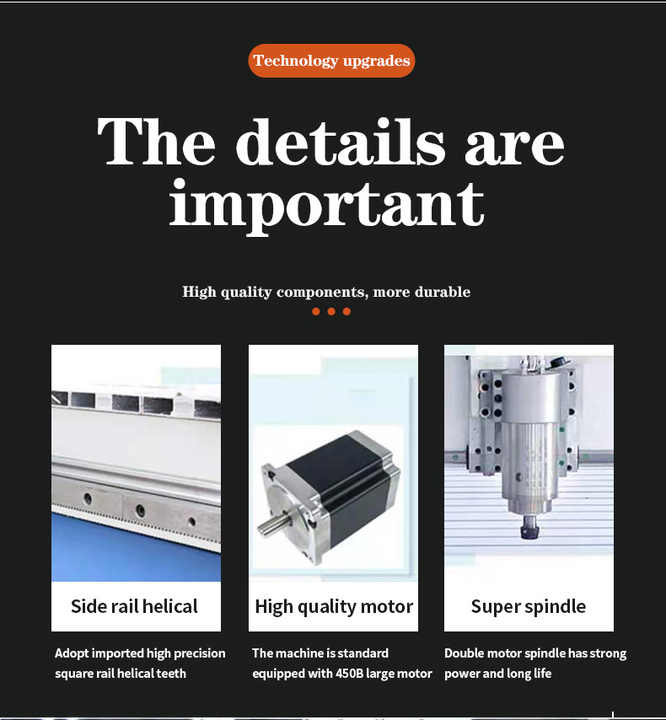

4. X axis rack and pinion drive, Y axis 2 way rack and pinion drive and Z axis 2510 Ball screw

5. X, Y, Z axis Taiwan square rails PMI

6. 450B stepper motor and MA860H Leadshine driver or servo motor and driver

7. 2.2KW water cooling spindle and 3.7kw Fuling inverter, other spindles are optional

8. Ncstudio control system, DSP  is optional

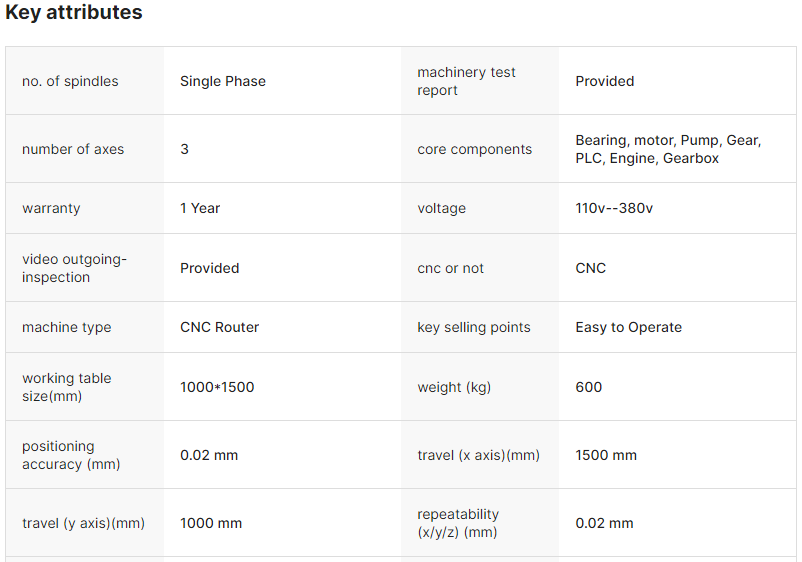

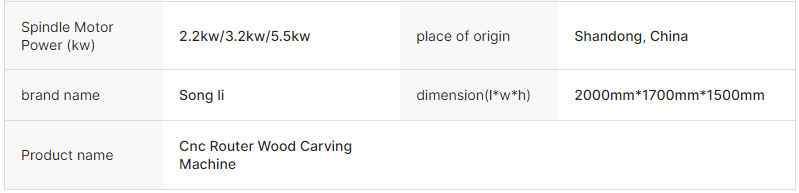

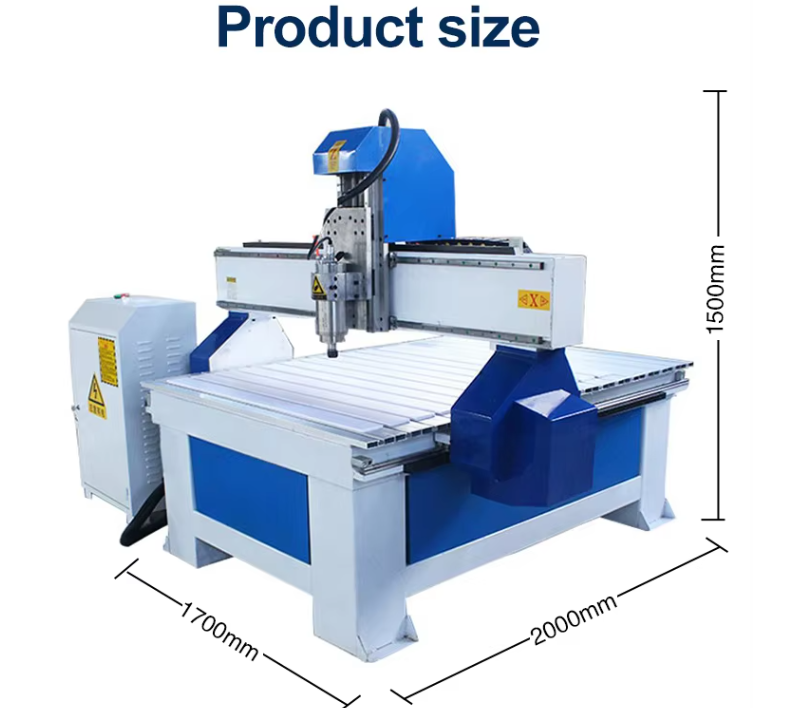

Working area1000*1500*200mm
Table styleAluminum T-slot table with pvc;
Machine structure8mm thickness welded steel tube,cast iron vertical shafts and steel gantry
Spindle3.0kw water cooling spindle
Spindle rotating speed0-24000rpm
Collect sizeER20
Guide railHiwin square guide rail
Driving methodX,Y axis by helical gear rack,Z axis by TBI ball screw
Motors and driversStepper motor450B,Leadshine drivers MA860H
Control system Ncstudio
Invert Fuling invert
Max.idling speed25m/min
Max.working speed12m/min
Working accuracy<0.01/300mm
Instruction formateG cose*u00*mmg*plt
Working voltage220v/380v
Compatible softwareType3/Castmate
Control cabinetIndependent
OtherTool sensor,oiling system,water pump,tool box etc.

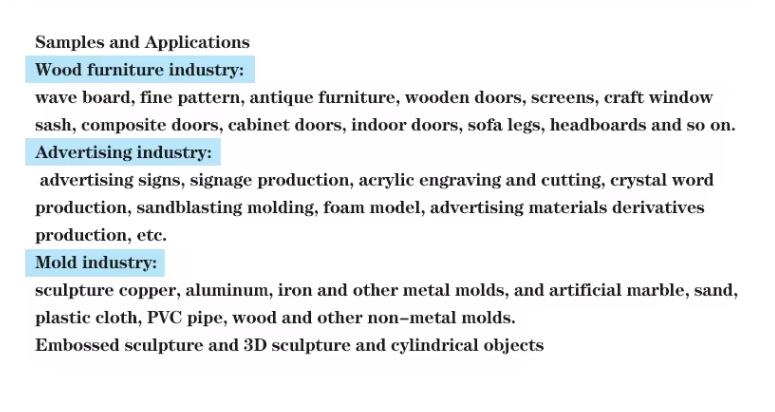

Application

Wood Processing: processing of various furniture such as door, window, cabinet, screen and so on

Advertisement: engraving and cutting various labels and number plate.

Art crafts: engraving characters of any languages and graphics on gifts and souvenirs.

Applicable materials

wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal materials.Stone material
